OL 90 N

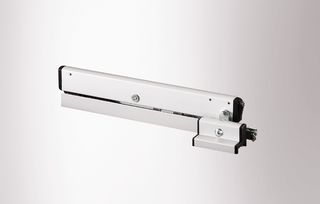

Scissors OL 90 N Scissors OL 90 N with standard leaf bracket
- Achieves the full opening width of 170 mm for all leaf heights
- Little space necessary thanks to flat design of the scissors
- Locking in the scissors guarantees a safe leaf locking mechanism
- Unhinging inhibitor on the scissors offers additional safety
- Scissor unhooking by pressing the release button facilitates window cleaning from inside and outside
- Completely pre-mounted assembly groups facilitate installation
Scissors OL 90 N with standard leaf bracket
Application Areas
- Convenient daily ventilation for rooms and staircases
- Inward-opening rectangular windows with bottom-hung leaves
- Installation on wooden (no Euro-groove), PVC or aluminium windows
- Frame installation

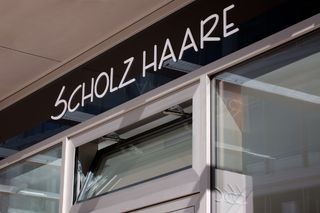

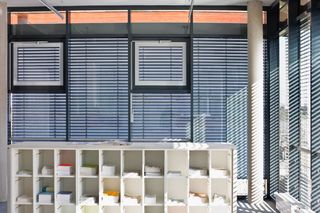

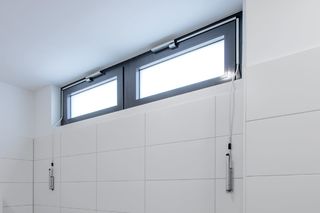

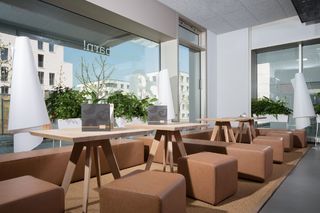

Installation situations in reference objects and videos
Technical data
Scissors OL 90 N | |
Opening width (max.) | 170 mm |
Leaf width (min.) | 380 mm |
Leaf height (min.) | 250 mm |
Leaf weight (max.) | 80 kg |
Space needed (max.) | 19 mm |
Adjustable opening width (stroke reduction) | Yes |
