TS 5000 L ECline * Overhead door closer with guide rail, for opposite hinge side, for accessible single leaf doors of up to 1250 mm leaf width with opening support
- Closing force of EN3-5 with variable adjustment
- Barrier-free in accordance with DIN 18040 up to EN5 (1250 mm leaf width)
- Can be used for right and left hand doors without conversion
- Opening assistance for easy opening and comfortable passing of the door
- Opening assistance can be switched off for doors with wind load or pressure differences
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- Integrated back check, slows down doors that are thrown open forcefully
- Visual closing force display for easy control of the setting
- All functions can be adjusted from the front
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1250 mm leaf width
- Door leaf installation opposite hinge side and transom installation hinge side
- Access for all in accordance with DIN 18040 up to EN5
Installation situations in reference objects and videos
Technical data
TS 5000 L ECline | |
Closing force in accordance with EN 1154 | EN 3 - 5 |
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1250 mm |
Leaf width (max.) | 1250 mm |

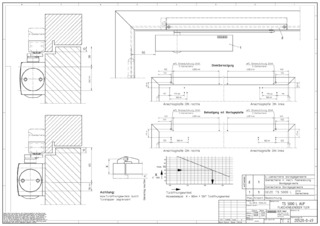

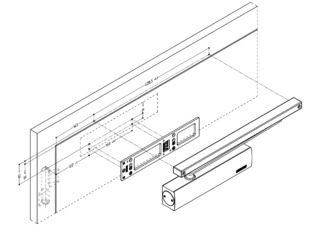

Type of installation | Transom installation hinge side, Door leaf installation opposite hinge side |
Opening angle (max.) | 180 ° |
Suitability for fire protection doors | Yes |
Closing force adjustable | Yes, stepless |
Adjustable closing speed | Yes |
Latching action adjustable | Yes, via valve |
Back check integrated | Yes, hydraulically adjustable |
Integrated opening assistance | Yes |
Position of closing force adjustment | Front |
Visual closing force display | Yes |
Hold-open function | Optional |
