Slimchain 230 V

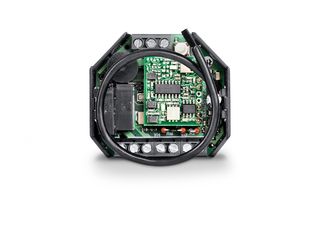

WRM-230 * Receiving module for activating window drives with 230 V DC

WRM 230 receiving module Activation device
  • Encrypted communication via rolling code with up to 74 trillion code combinations
  • Simple teach-in via learn button with acoustic feedback
  • Up to 85 radio transmitters can be taught
  • Operating voltage 230 V AC
Contact us

Application Areas

  • Activation of GEZE 230 V window drives via the GEZE wireless program
  • Flush-mounted installation

Technical data

WRM-230
Dimensions 52 x 47 x 23 mm
Output Electrical relay
IP rating IP20
Type of installation Flush-mounted installation
Connection type Screw terminal
Transmission frequency 433.93 Mhz
Service temperature 0 - 50 °C
