Boxer E

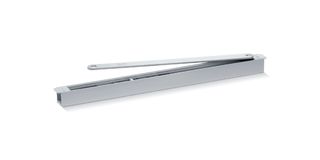

E guide rail Boxer * With lever and electric hold-open device

E guide rail Boxer
  • Operating voltage 24 V DC
  • Retention force of the electromechanical hold-open device can be variably adjusted
  • With screwed slide block
Contact us

Application Areas

  • Single leaf doors
  • Integrated installation
  • Hold-open systems with integrated hold-open device
  • Right and left single-action doors

Technical data

E guide rail Boxer
Input voltage 24 V DC
Electrical power consumption 1 W
Duty rating 100 %
Residual ripple 20 %
IP rating IP43
Standard conformity EN 1155
Length 440 mm
Width 31 mm
Height 30 mm
Hold-open function Electrical
Hold-open device can be switched on and off Yes
Hold-open device can be overridden Yes
Hold-open range 80 ° - 120 °
Flexible opening restrictor Yes

Variants & Accessories
