TS 5000 R/0

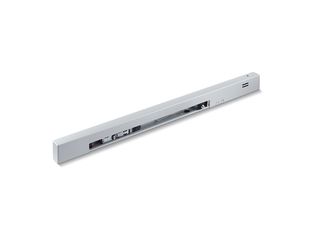

R guide rail TS 5000 * with integrated smoke switch control unit and lever, without electric hold-open device

TS 5000 R guide rail, R guide rail TS 5000 opposite hinge side, TS 5000 R guide rail without electric hold-open device
  • Integrated smoke switch control unit
  • Smoke switch with contamination indicator and adaption of the alarm threshold
  • Additional smoke detectors can be fitted
  • Operating voltage 230 V AC
  • Horizontally adjustable in the installation position by 4 mm through elongated holes
  • With screwed sliding block
Contact us

R guide rail TS 5000

with integrated smoke switch control unit and lever, without electric hold-open device

Application Areas

  • Single leaf doors
  • Hold-open systems with integrated smoke switch
  • For combination with a free swing door closer or hold-open magnet
  • Installation on hinge side
  • Right and left single-action doors

Technical data

R guide rail TS 5000
Supply voltage 230 V AC
Input voltage 230 V AC
Frequency of supply voltage 50/60 Hz
Duty rating 100 %
IP rating IP20
Approvals General building approval from DIBt as a hold-open system
Length 745 mm
Width 55 mm
Height 30 mm
opening restrictor upgradable Yes
Hold-open function Optional
Smoke switch integrated Yes
Contamination indicator Yes
Adaption of the alarm threshold Yes
Integrated power supply Yes
Height correction possible Yes
Flexible opening restrictor Yes

Downloads

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
