TS 5000 RFS 3-6 KB

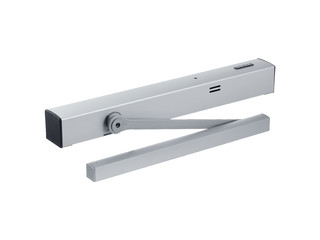

TS 5000 RFS complete package * Overhead door closer with guide rail EN 3-6 with electric free swing function and smoke switch control unit

GEZE TS 5000 RFS transom installation complete package Door closer with integrated free swing function and hydraulic latching action
  • Closing force can be variably adjusted from the front
  • Visual closing force display ensures correct setting
  • Closing seed can be adjusted from the front via valve
  • Latching action can be adjusted from the front via valve
  • Door closer, can be used for right and left hand doors
  • Power supply for 230 V supply voltage
Show more
  • Smoke switch with adaption of the alarm threshold, contamination indicator and concealed release button for testing
  • Additional smoke switches can be connected
Contact us

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 1400 mm leaf width
  • Transom installation hinge side
  • Hold-open systems with integrated hold-open function with free swing
  • Barrier-free access in accordance with DIN 18040

Technical data

TS 5000 RFS complete package
Closing force in accordance with EN 1154 EN 3 - 6
Leaf width (max.) 1400 mm
Type of installation Transom installation hinge side
Opening angle (max.) 180 °
Identical design for DIN left and DIN right Yes
Supply voltage 230 V
Input voltage 230 V AC
Frequency of supply voltage 50/60 Hz
Duty rating 100 %
IP rating IP20
Standard conformity EN 1154:1996/A1:2002/AC:2006, EN 1155
Approvals General building approval from DIBt as a hold-open system
Suitability for fire protection doors Yes
Mounting plate with hole pattern in accordance with EN 1154 supplement Yes
Length 548 mm
Width 66 mm
Height 65 mm
Free swing area 85 ° - 160 °
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated No
Position of closing force adjustment Front
Visual closing force display Yes
Safety valve againts overload Yes
Thermo-control valves Yes
Hold-open function Electrically, for free swing function
Smoke switch integrated Yes
Contamination indicator Yes
Adaption of the alarm threshold Yes
Integrated power supply Yes
Flexible opening restrictor Yes
