Slimdrive

Slimdrive SL-T30 Automatic sliding door system for fire protection doors with resistance class T30

Slimdrive SL-T 30 Fire protection doors of resistance class T 30 are fire-retardant doors in accordance with DIN 4102 and smoke-proof in accordance with DIN 18095. The closing function remains assured even in case of fire. After the fire alarm and/or after the failure of the mains supply voltage, the door is forced to close by means of pre-stored energy. The T30 sliding door systems are offered in cooperation with partner companies.
  • Very quiet running, low-wear direct current drive with a height of only 7 cm
  • Independent error recognition and recording
  • Various mechanical and electrical locks are optionally available
Contact us

Slimdrive SL-T30

Automatic sliding door system for fire protection doors with resistance class T30

Application Areas

  • Single and double leaf sliding door systems
  • Door leaf weight of up to 120 kg per leaf
  • Opening widths of 900 to 2500 mm possible

This product has been awarded

Architects Darling Award 2019, bronze for automatic doors

Installation situations in reference objects and videos

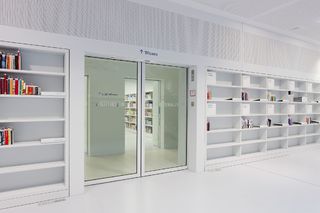

Automatic sliding door Slimdrive SL T30 in the Stuttgart City Library Automatic sliding door for fire protection doors with the resistance class T30 installed in the municipal library in Stuttgart

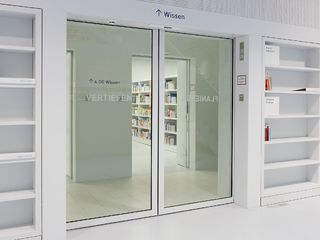

Automatic sliding door Slimdrive SL T30 in the Stuttgart City Library

Automatic sliding door for fire protection doors with the resistance class T30 installed in the municipal library in Stuttgart © GEZE GmbH

Sliding door solutions from GEZE, product video

ECdrive T2, Slimdrive and Powerdrive: Tailored, efficient and open to the demands of tomorrow.

Technical data

Slimdrive SL-T30
For 1-leaf door systems Yes
For 2-leaf door systems Yes
Fire protection leaf T30 (Hörmann) Yes
Depth 189 mm
Leaf weight (max.) 1-leaf 120 kg
Leaf weight (max.) 2-leaf 120 kg
Opening width 1-leaf 700 mm - 2000 mm
Opening width 2-leaf 900 mm - 3000 mm
Service temperature 10 - 40 °C
IP rating IP20
Disconnection from mains Main switch in the drive
Standard conformity DIN EN ISO 13849: Performance Level D

Downloads

Variants & Accessories

GC 363 combined detector
Accessories

GC 363

Combined detector for activating and protecting automatic sliding doors with ten different infrared light curtain configuration settings

Product details
Elbow switch Stainless steel
Accessories

EFT elbow switch

Stainless steel elbow switch with IP65 IP rating for activating automatic doors

Product details
Elbow switch Niro
Accessories

KFT elbow switch

Plastic elbow switch, IP rating IP20, for activation of automatic doors

Product details
