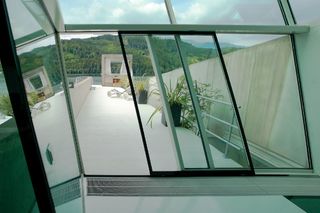

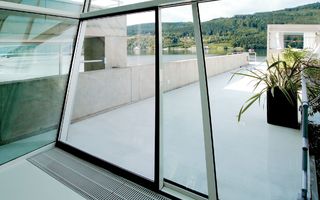

Slimdrive SL inclined * Automatic linear sliding door system for use on inclined glass façades

Slimdrive SL inclined Double leaf sliding door systems. Use in inclined glass façades in post-rail constructions. Interior and exterior doors with high access frequency. Integrated infraredIndependent error recognition and recording.Adjustment options for all door motion parametersFreely configurable inputs and outputs for different functionsIntegrated rechargeable battery for emergency opening in case of safety-related errors such as power failure.
  • Freely-selectable inclination angle up to 9.9° (larger angles available upon request)
  • Continuous floor guide
  • Very quiet running, low-wear direct current drive with a height of only 7 cm
  • Integrated infrared movement detector
  • Can be networked, and integrated into the building automation via open standard (BACnet)
  • Independent error recognition and recording
Show more
  • Adjustment options for all door movement parameters
  • Freely configurable inputs and outputs for different functions
  • Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
  • Self-cleaning roller carriage reduces maintenance effort and costs
  • Various mechanical and electrical locks are optionally available
Contact us

Application Areas

  • Double leaf sliding door systems
  • Use in inclined glass façades in mullion-transom constructions
  • Interior and exterior doors with high access frequency
  • Opening widths of up to 2500 mm are possible.
  • Door leaf weights of up to 100 kg per leaf, depending on inclination angle
  • Suitable profile systems are fine-framed profile systems with ISO and mono glass

Technical data

Slimdrive SL inclined
For 1-leaf door systems -
