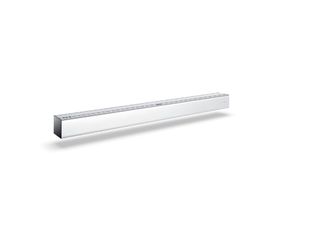

Powerdrive PL-FR Automatic linear sliding door system in escape and rescue routes for large and heavy doors of up to 160 kg leaf weight
- Escape route function with redundant drive design
- Very powerful drive for large, heavy leaves and wide opening widths
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Adjustment options for all door movement parameters
- Freely configurable inputs and outputs for different functions
- Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
- Various mechanical and electrical locks are optionally available
Application Areas
- Single and double leaf sliding door systems along escape and rescue routes
- Interior and exterior doors with high access frequency
- Opening widths from 700 to 3000 mm possible
- Door leaf weights of up to 160 kg per leaf
- Suitable profile systems are fine-framed profile systems with ISO and mono glass, toughened safety glass clamping profile, on-site frame and wooden leaves
Installation situations in reference objects and videos
ECdrive in Pediatric Cancer Center SJD
Facade of the building with EC Drive at the entrance © GEZE Iberia

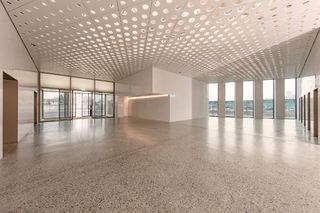

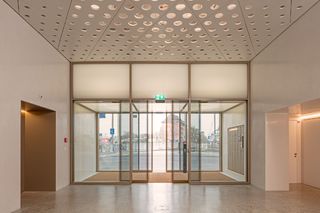

Automatic sliding door drive Powerdrive PL-FR installed in the Grosspetertower in Zurich
Automatic linear sliding door system in emergency exits for large and heavy doors up to 160 kg leaf weight © Lorenz Frey / GEZE GmbH

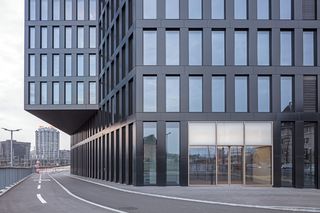

Sliding door drive Powerdrive PL at the entrance to the Grosspetertower in Zurich
Automatic linear sliding door system for large and heavy doors with independent fault detection and logging © Lorenz Frey / GEZE GmbH
Automatic sliding door drive Powerdrive PL-FR installed in the Grosspetertower in Zurich
Automatic linear sliding door system for large and heavy doors with independent fault detection and logging © Lorenz Frey / GEZE GmbH
Automatic sliding door drive Powerdrive PL-FR with bollard for the switches in the entrance area of the Grosspetertower in Zurich
Automatic linear sliding door system in emergency exits for large and heavy doors © Lorenz Frey / GEZE GmbH
Automatic sliding door drive Powerdrive PL-FR installed in the Grosspetertower in Zurich
Automatic linear sliding door system in emergency exits for large and heavy doors up to 160 kg leaf weight © Lorenz Frey / GEZE GmbH
Sliding door solutions from GEZE, product video
ECdrive T2, Slimdrive and Powerdrive: Tailored, efficient and open to the demands of tomorrow.
Technical data
| Powerdrive PL-FR | |
| For 1-leaf door systems | Yes |
| For 2-leaf door systems | Yes |
| Fine-framed insulating glass | Yes |
| MONO glass fine-framed | Yes |
| ESG clamping profile | Yes |
| Framed leaf (on site) | Yes |
| Wooden leaf (on site) | Yes |
| Height | 150 mm |
| Depth | 185 mm |
| Leaf weight (max.) 1-leaf | 160 kg |
| Leaf weight (max.) 2-leaf | 160 kg |
| Opening width 1-leaf | 700 mm - 3000 mm |
| Opening width 2-leaf | 800 mm - 3000 mm |
| Service temperature | -15 - 50 °C |
| IP rating | IP20 |
| Disconnection from mains | Main switch in the drive |
| Standard conformity | AutSchR, DIN 18650, DIN EN ISO 13849: Performance Level D, EN 16005 |
