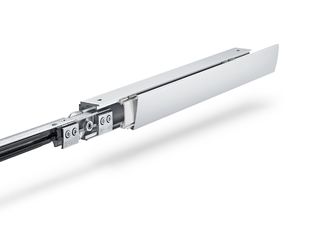

Levolan 60 Glass Sliding door fitting for 60 kg glass leafs

Levolan 60 A sophisticated solution for the easy functional design and effortless movement of manual sliding door in internal applications
  • Design sliding door fitting system for glass doors with ESG (toughened safety glass ) 8 to 12 mm as well as LSG up to 10.76 mm and up to 60 kg leaf weight
  • Slim design with integrated door fitting technology
  • Fully integrated in the track
  • The Levolan Smart fix installation system means the use of assembly tools is reduced to a minimum - for quick and convenient installation
  • Final assembly of the door fitting by simple clipping
  • With damping on one or both sides for doors with up to 60 kg leaf weight, so that the door is quietly slowed down and moved automatically into the end position
Show more
  • Tested for durability in accordance with DIN EN 1527 over 100,000 test cycles
Contact us

Sliding door fitting for 60 kg glass leafs

Application Areas

  • For design-oriented interior sliding doors for living and office areas
  • For all single- and multiple-leaf sliding doors
  • For attachment on the wall and ceiling (directly and concealed) as well as for glass installation
  • Damped on one or both sides with Levolan 60 SoftStop
  • Smooth running with Levolan 60 SoftStop makes it particularly well suited for doors in living and office spaces

Technical data

Levolan 60 Glass
Leaf material Toughened safety glass (ESG-H), Laminated safety glass (LSG from toughened safety glass)
Leaf weight (max.) 60 kg
Number of leaves 1-leaf
Leaf width (min.) 400 mm
Leaf width (max.) 1240 mm
Leaf height (max.) 3500 mm
Leaf thickness from 8 mm
Leaf thickness to 12.76 mm
Track geometry straight
EN 1670 Corrosion resistance 3 (acc. to EN 1670: Class 0 = none defined, Class 1 = low, Class 2 medium, Class 3 = high, Class 4 = very high, Class 5 = extraordinary)
EN 1527 Continuous function 100,000 test cycles
Type of installation Wall, Ceiling, Concealed in the ceiling, Glass installation
DIN direction left / right
Manual operation Yes
Surface anodised
Colour EV1
