TS 500 NV

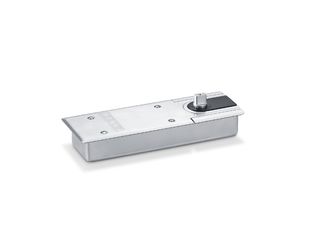

TS 500 N EN3 with hold-open unit * Floor spring for single leaf single-action/double-action doors up to 950 mm leaf width with optional hold-open device
- Fixed closing force of EN3
- Can be used for right and left hand doors without conversion
- Mechanical hold-open unit in the door closer with hold-open area 85°/90°/105°/120°
- Closing speed can be individually adjusted
- Hydraulic latching action which accelerates the door shortly before it is closed
- Integrated back check, slows down doors that are thrown open forcefully
Application Areas
- Right and left single- and double-action doors
- Single- and double-action doors up to 950 mm leaf width and 100 kg weight
- Floor mounting, concealed
Technical data
| TS 500 N EN3 with hold-open unit | |
| Use on single-/double-action door | Single-action door, Double-action door |
| Type of installation | Floor |
| Opening angle (max.) | 170 ° |
| Closing force in accordance with EN 1154 | EN 3 |
| Leaf width (max.) | 950 mm |
| Leaf weight (max.) | 100 kg |
| DIN direction | left / right |
| Closing force adjustable | No |
| Adjustable closing speed | Yes |
| Back check integrated | Mechanically fixed |
| Position of closing force adjustment | Top |
Downloads
TS 550 NV
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
