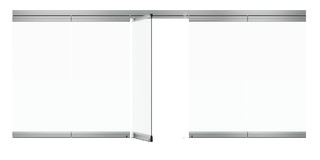

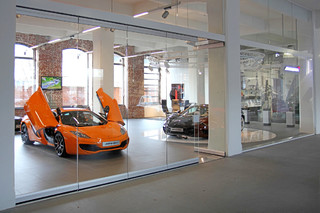

MSW Comfort Movable all-glass partition wall system for shop partitions and flexible room design

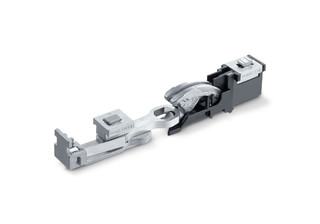

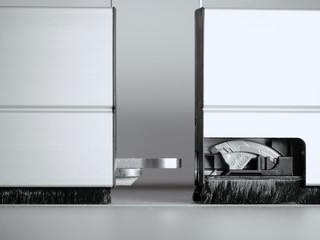

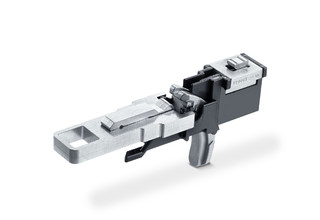

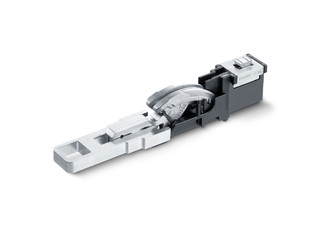

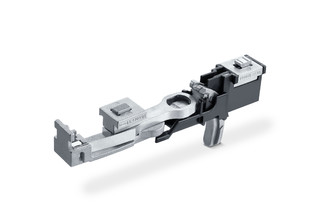

MSW Anlage mit Comfort-Verriegelung Die neue mechanisch automatische MSW Comfort Elementverriegelung vereinfacht den Auf- und Abbau von Shop- und Anlagenfronten. Die im unteren Elementprofil integrierten Einheiten verriegeln sich automatisch zum Boden und untereinander durch das Verschieben der Elemente. Eine händische Betätigung ist somit nicht mehr erforderlich.
  • Design lines: Classicline, Pureline and Protectline
  • Upper and lower continuous horizontal profile offers maximum transparency
  • Consisting of swing doors and sliding panels
  • Optional with sliding swing door
  • Comfort locking mechanism integrated as standard
  • SmartGuide technology integrated depending on selected stacking area
Show more
  • Panel weight up to 150 kg
  • ESG and LSG can be used
  • Glass thickness up to 12.76 mm
  • Track system with curve technology for easier movement of the elements
Contact us

Application Areas

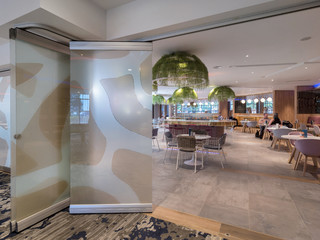

  • Movable glass partitioning walls
  • Internal and protected external area
  • Can be used up to 4000 mm clear height
  • Can be used up to 1500 mm element width
  • Can be used for linear and segmented axis profiles

Technical data

MSW Comfort
Frameless Yes
Indoor use Yes
Outdoor use Yes
Leaf height (max.) 4000 mm
Leaf width (min.) 700 mm
Leaf width (max.) 1500 mm
Leaf weight with single carriage (max.) 100 kg
Leaf weight with double carriage (max.) 150 kg
Stacking area layout Parallel, 90°, Special stacking area
Stacking area distribution one-sided, double-sided
Track geometry straight, polygonal, bent continuously

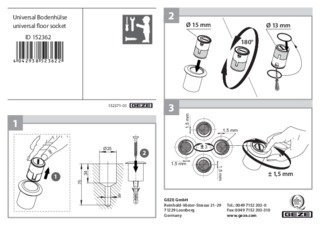

Optional floor guide Yes

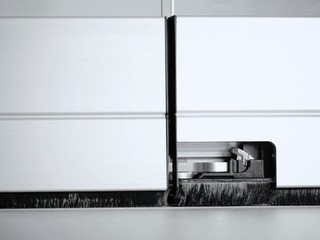

Top and bottom sealing brushes Yes
